Reverse Osmosis - Flocon Industries

Reverse Osmosis

Products Description:

Reverse osmosis (RO) is one of the most effective processes for providing a consistent supply of high purity water in healthcare applications. Typically, an RO system works by feeding a conventional mains supply under pressure into a module containing a semi-permeable membrane. The membrane removes a high proportion of impurities, including up to 98% of inorganic ions, together with virtually all colloids, micro-organisms and macromolecules, with almost 70% - 80% of the feed-water passing through the membrane as a purified permeate, with impurities being removed in a residual concentrate stream that is run to drain.

RO systems generally include a pre-treatment package designed to meet the characteristics of the feed-water. Typically, this equipment includes a combination of multi-grade sand filter, Ion-exchange softener and Ultrafilteration to remove Suspended solids, hardness, Silica and microbial load that would otherwise shorten life of the RO membranes. Further protection being provided by passing the water through activated carbon filters or by dosing SMBS, to remove free chlorine and organic contaminants, with any remaining particulates being removed by a fine filter before the pre-treated water enters the RO plant.



Reverse Osmosis by Flocon Industries:

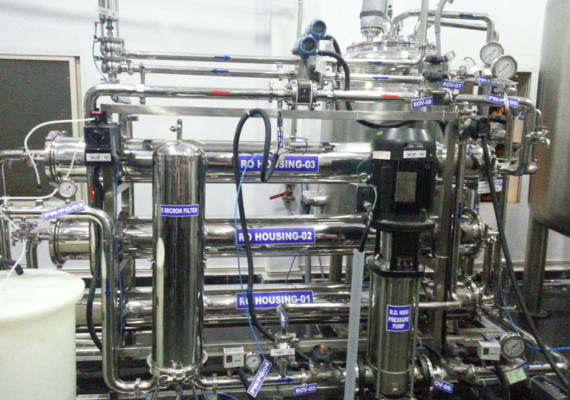

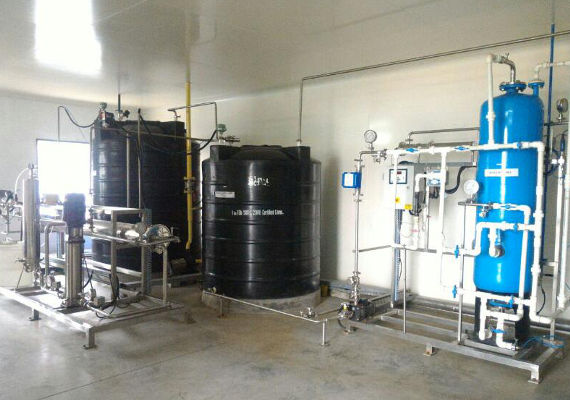

Reverse osmosis (RO) systems from Flocon Industries offer a cost-effective and sustainable solution for Generating High purity water. Our portfolio of industrial reverse osmosis (RO Systems) systems includes those specifically engineered and designed for large industrial applications, medium sized commercial applications, small laboratory applications and trailer-mounted mobile systems for temporary and emergency applications


Standard Features

  • Complete DQ/ IQ/OQ validation package with protocol execution support.

  • High membrane crossflow velocity Reduces fouling

  • Highly effective cleaning system

  • Durable stainless steel construction

  • 0.5 Ra SS316L Electro-polished permeate piping

  • Premium valves and instruments

  • Unit is completely piped, wired, and assembled on skid(s) at the factory Reduces installation costs and startup time.

  • Permeate sample ports

  • Heat sanitizable: hot water or steam arrangements available

  • PLC based controls

  • 304 Stainless Steel Skid
