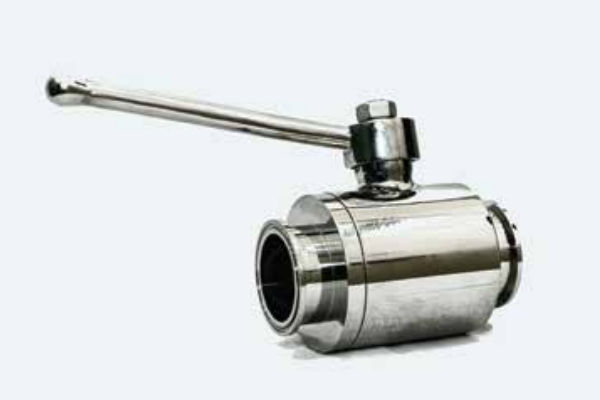

Ball Valve (Two Piece Design)

Products Description:

FLOCON INDUSTRIES have an extensive experience in manufacturing of sanitary BALL VALVES. Sanitary ball valve designed with bore diameter same as of pipe diameter.


Working Principle:

The Flocon Industries sanitary ball valve has a precision-made ball with full bore positioned inside the valve body and two PTFE valve seats and one retainer. A 90° rotation of the valve stem enables opening or closing the valve. A specially selected PTFE-grade material secures long lifetime. Manually-operated handle enables valve operation. Valve retainer enable assembly and disassembly for easy inspection cleaning and maintenance.


Design Code:

Confirming to ASME B16 / ASME BPE & Equiv Standards.

Ball Valve (Two Piece Design)

Standard Design:

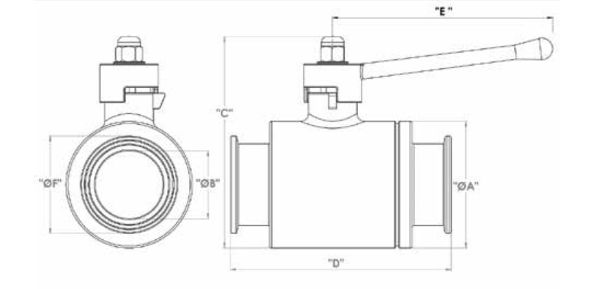

The Flocon Industries sanitary ball valve consists of a valve body and one retainer, a ball fitting into sealing seats, and a stem connecting to a manual handle. The valve comes with standard Triclover ends, SMS union ends and Butt weld ends. Standard design enables cleaning and product recovery using pigging systems OD Standards.


Benefits:

  • Reliable full-flow performance

  • Durable and water hammer-safe

  • Compact hygienic design

  • Easy to clean

  • Versatile operation manual control



Application:

The Flocon Industries sanitary ball valve is ideal for use as a hygienic product valve across the dairy, food, beverage, chemical, Pharmaceutical and many other allied industries.


Technical Specification:

Size ½” to 4” OD
Max. Operating Pressure 14 Bar
Max. Operating Temperature 140°C
Material of Construction SS304, SS316L
Seat Teflon
Surface Finish Internally Ra <0.4 µm
External Finish Internally Ra <0.8 µm
