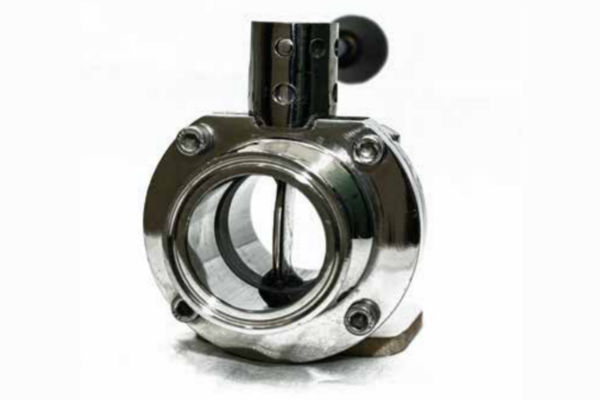

Butterfly Valve
Products Description:
The FLOCON INDUSTRIES Butterfly Valve is a reliable, hygienic in-line valve for routing low and medium-viscosity liquids in stainless steel pipe systems due to its substantial opening area and low flow resistance. The Butterfly Valve is available with a standard handle for manual operation.
Working Principle:
The Flocon Industries Butterfly Valve can be operated manually by means of a handle. A handle mechanically locks the valve in open or closed position. Flocon Provides a total of Four-position locking and regulating 90°-position handles.
Design Code:
Confirming to ASME B16 / ASME BPE & Equiv Standards

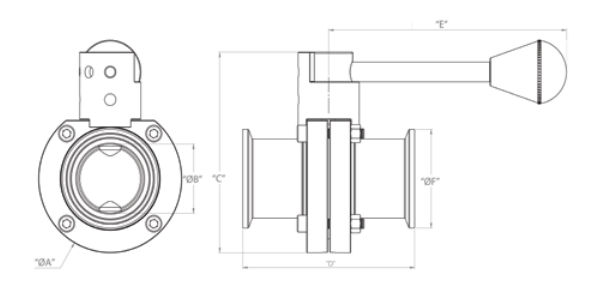

Standard Design:
The Butterfly Valve consists of two valve body, valve disc, and bushings for the disc stem and a seal ring. These components are assembled by means of screws and nuts. The valve comes with standard Triclover ends, SMS union ends and Butt weld ends. A handle for manual operation is fitted onto the valve by means of a cap/block system and a screw.
Benefits:
-
Reliable full-flow performance.
-
Reliable, cost-effective performance
-
Versatile, highly modular, hygienic design.
-
Easy to clean
-
Versatile operation manual control.
Application:
The Flocon Industries hygienic Butterfly valve is designed for on-off duties with low to medium-viscosity liquids in hygienic applications across the dairy, food, beverage, brewery and many other industries.
Technical Specification:
| Size | 1” to 4” OD |
|---|---|
| Max. Operating Pressure | 10 Bar |
| Max. Operating Temperature | 140°C |
| Material of Construction | SS304, SS316L |
| Seat | Silicon / EPDM Food Grade |
| Surface Finish Internally | Ra <0.4 µm |
| External Finish Internally | Ra <0.8 µm |
