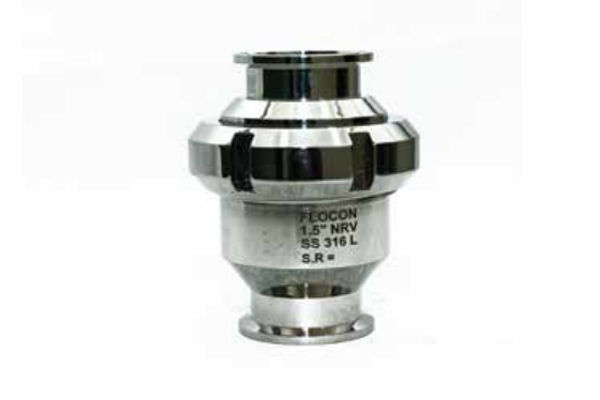

Non Return Valve

Products Description:

The FLOCON INDUSTRIES Non-return Valve is a hygienic one-way check valve for use in various processes across the hygienic industries to prevent reverse flow. It is easy to install, ensuring safety and high product quality.


Working Principle:

The Flocon Industries Non-return Valve opens and closes depending on the pressure. The spring acts on the valve plug and keeps the valve closed until the force from the pressure in the inlet exceeds the force of the spring. If a reverse flow should occur, the spring force and the pressure from the outlet will keep the valve closed. Required differential pressure for opening the valve when fitted in a vertical pipe is approximately 0.2 to 0.5kg/cm2.


Design Code:

Confirming to ASME B16 / ASME BPE & Equiv Standards.

Non Return Valve

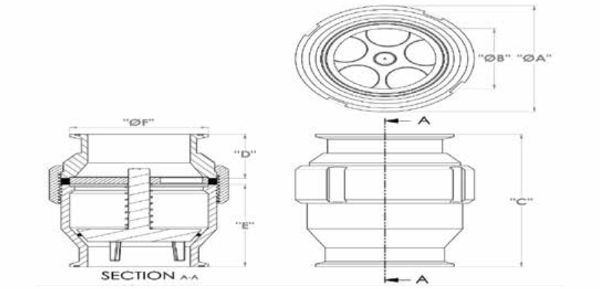

Standard Design:

The Flocon Industries Non-return Valve consists of a valve body in two parts, valve plug and spring, assembled by means of a clamp ring or SMS Nut and hygienically sealed with a special seal ring. A guide disc with four legs ensure alignment of the spring-loaded valve plug with an O-ring seal. The valve is available with Triclover ends, SMS Union ends and Butt weld ends.


Benefits:

  • Reliable full-flow performance.

  • Protects process equipment

  • Compact hygienic design

  • Easy to install

  • Highly reliable, self-acting valve

  • Prevents reverse flow



Application:

The Flocon Industries hygienic Non Return valve is designed for on-off duties with low to medium-viscosity liquids in hygienic applications across the dairy, food, beverage, brewery and many other industries.


Technical Specification:

Size ½” to 4” OD
Max. Operating Pressure 14 Bar
Max. Operating Temperature 120°C
Material of Construction SS304, SS316L
Seat EPDM Food Grade
Surface Finish Internally Ra <0.4 µm
External Finish Internally Ra <0.8 µm
